Features:

- Laminated IPS LCD screen for Nintendo Game Boy Advance consoles.
- Requires a modified shell or shell cutting / trimming to install.
- Brightness, colour and display mode touch sensors built in
- 3.00" screen size with traditional Advance logo on glass
- Optional 3 wires to solder for OSD menu controls.

Description:

The latest Game Boy Advance Laminated Display from Hispeedido offers an improved resolution closer to the original, resulting in an improved appearance compared to the 480 x 320 display.

The screen has touch sensors already build in, which control the features such as brightness and pixel modes options.

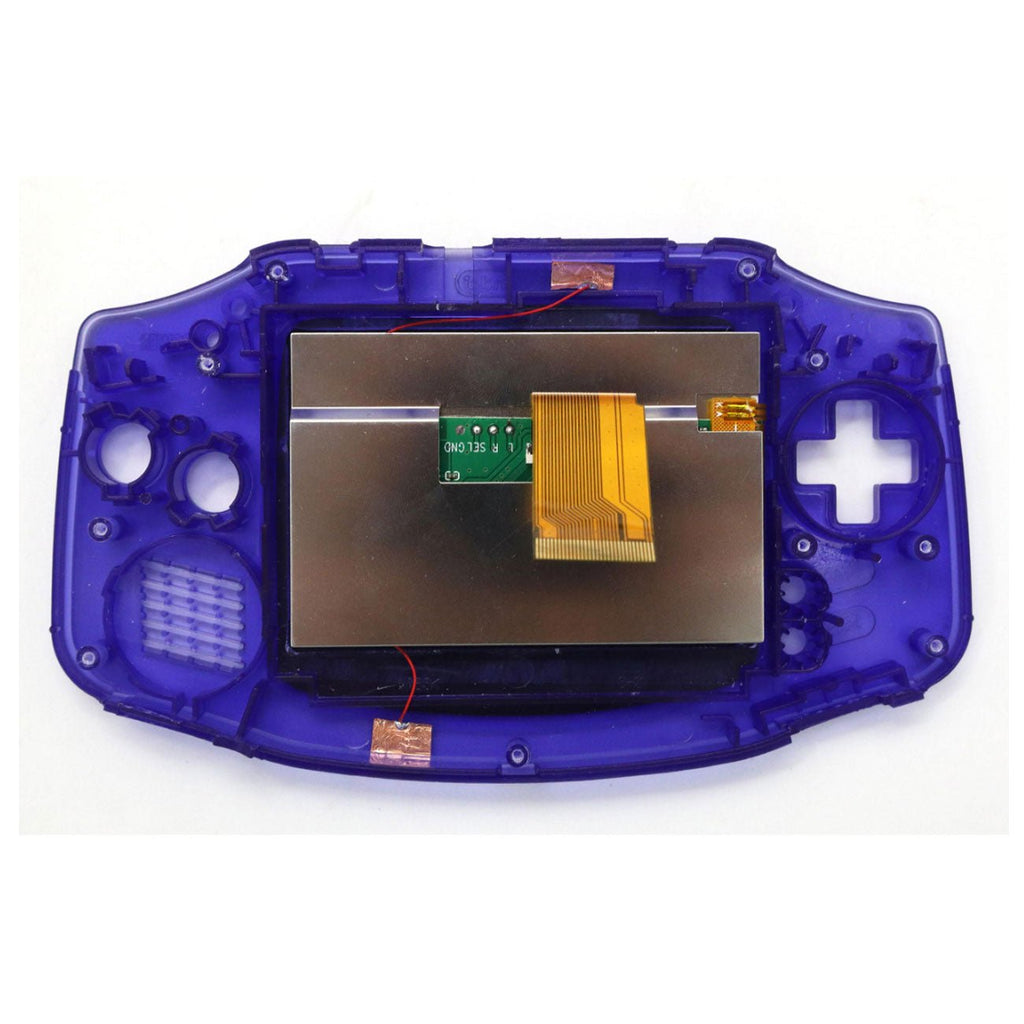

Fitting this IPS screen kit is simplified thanks to the integrated design, there is no PCBS to attach and no touch sensors to mount, no screen lens to align.

A drop in experience is possible if you purchase the IPS ready laminated compatible shell from Hispeedido.

If you have a shell you wish to cut, you will need to remove some of inner screen surround and shave down one side to be thinner, see the pictures for more guidance.

The IPS screen includes the LCD panel with laminated screen lens and ribbon cable all as one single unit, and that is it, you can choose to install a single wire included with the screen to allow you to control the brightness from the original button on the console and access an OSD menu, but this is completely optional and not required.

This upgrade will drop straight into most shells, cutting of a regular shell is not required, and an IPS ready shell is not needed.

The screen upgrade supports 15 levels of brightness, 8 different colour modes and 4 display modes, default display mode, retro pixel effect and 2 scan line effects.

NOTE: You should bench test the screen before installation to check for any issues, this helps us to support your warranty, you should leave the adhesive backing and protective film on the product until you are satisfied it is working correctly and there are no pixel faults etc, if you discover any faults please send a picture of the bench test to support@zedlabz.com for assistance.

Installing with soldering is optional (3 wires in total), if fitted this will allow brightness control from the original brightness button and provide access to an OSD menu.

Other items needed which are not included:  A IPS ready shell compatible with the laminated Hispeedido kit (or tools to cut an original / 3rd party shell), basic tools to open the game boy and fit this screen, soldering iron (optional), non of these items are included.

Please note that the LCD screen and ribbon cable require care to install and are fragile in nature, they are also more susceptible to damage once installed if the console is dropped, LCD screens can crack under pressure or with a impact, our warranty does not cover accidental / user damage of any components in this kit. Replacement parts will be available to purchase separately in the near future.
